Our turnkey systems include liquid and powder-dosing systems to combine with gel and granulate flowpacks or bottle filling systems or similar setups. Besides, we provide configurable systems that address the specific needs of our customers.
Our solutions are engineered to meet the evolving needs of pharmaceutical processing and production.
We design peristaltic dosing systems distinguished by compact layout, modular integration, superior cleanliness and precise control, alongside versatile transfer trolleys that optimize ergonomics, safety and operational continuity in cleanroom environments. Each system is configurable and adaptable, ensuring maximum flexibility and full compliance with industry requirements.
Our modular machines are designed to adapt to your specific production needs. Each module is built to be efficient and, most importantly, cost-effective. With SETIN, you can automate your processes without facing major expenses, while benefiting from cutting-edge technology that grows with your business.

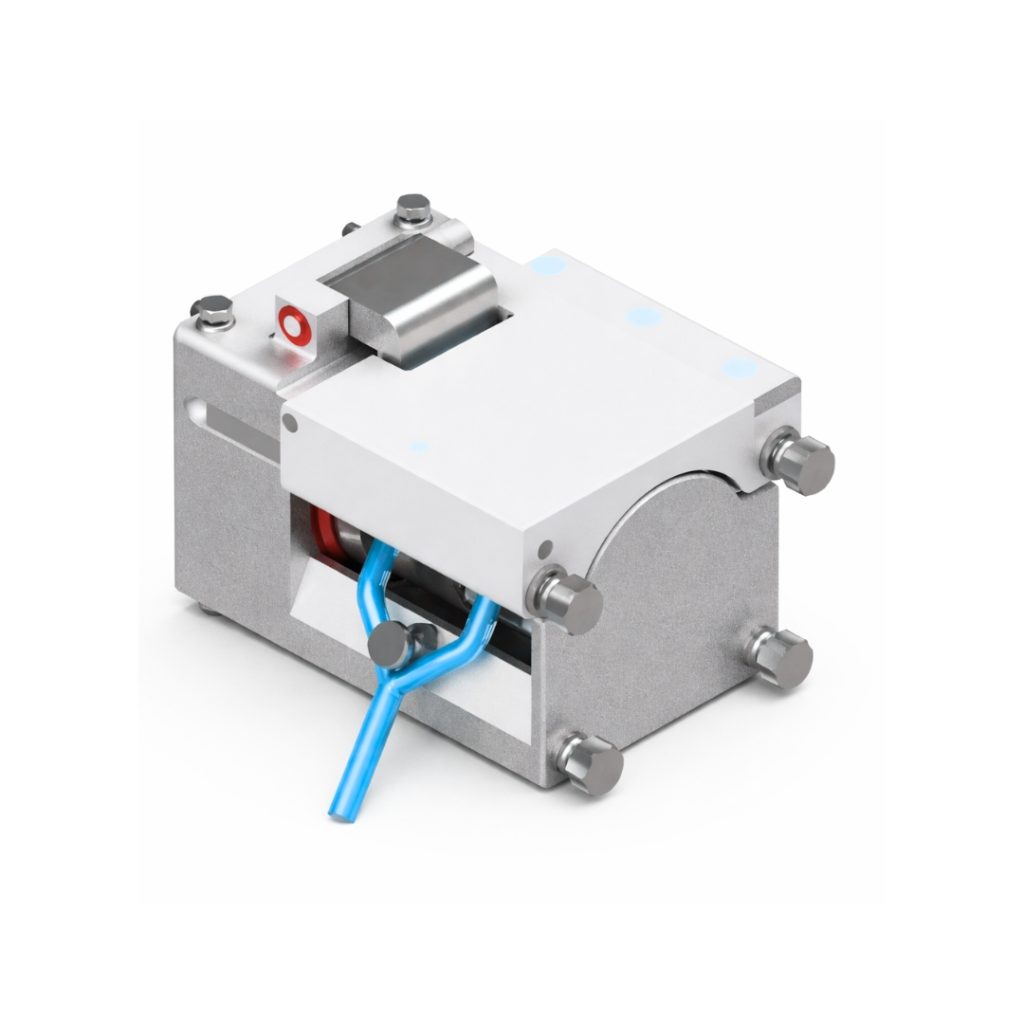

The SETIN peristaltic pumps has been specifically designed for liquid filling processes in pharmaceutical and biotech industries. In these sectors, fluid transfer systems must guarantee product integrity, process consistency and strict compliance with regulatory standards.
Peristaltic pumps are a proven solution for handling and dosing delicate fluids, based on a simple yet highly reliable operating principle.
The SETIN peristaltic pumps have been engineered to address these demands through a design approach that prioritizes precision, hygienic safety and long-term operational stability.
This standard guarantees:
Hygiene and aseptic process reliability are at the core of the HYDRA SLIM design.
Thanks to the PEEK leaf springs instead of traditional metal springs, fully sterilizable in autoclave, HYDRA SLIM:
Enhances contamination control
Improves procedures in GMP environments
Increased safety in aseptic dosing processes
The HYDRA SLIM pump is engineered to deliver high dosing accuracy and operational adaptability:
Dosing accuracy up to ±0.5%
Easy format changeover
Compatibility with tubing inner diameters from 0,5 mm to 8 mm
Operational efficiency and process safety at every stage
This flexibility enables the pump to handle different fill volumes without compromising precision or repeatability.
By eliminating critical mechanical elements and ensuring sterilizable components, the pump enhances contamination control and simplifies validation procedures in GMP environments.

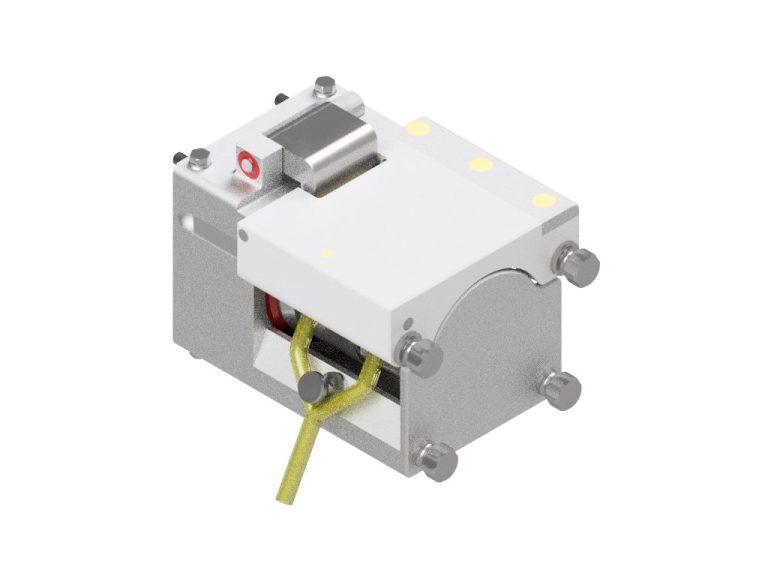

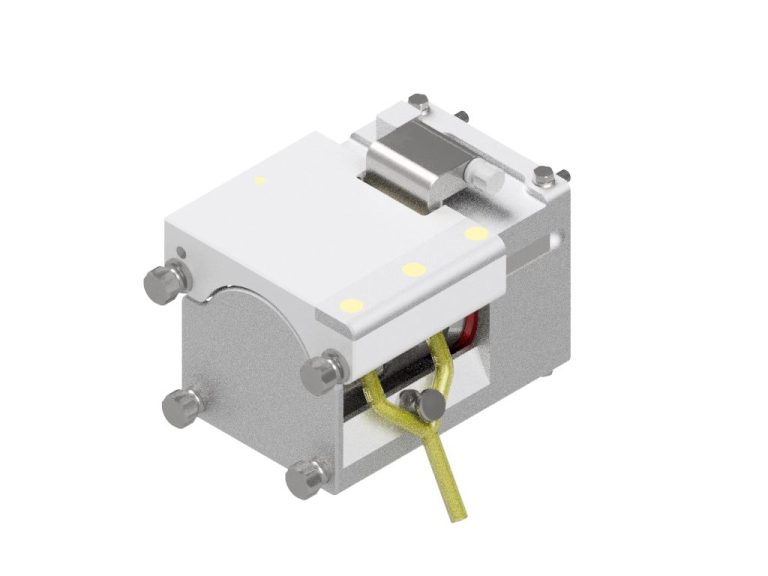

The HYDRA SLIM peristaltic pump has been specifically designed for pharmaceutical environments where space optimization, flexibility and aseptic safety are essential.
Optimized structure for multi-head installations
Pumps can be installed in series with a 130 mm pitch
Modular configuration depending on the required number of dosing lines
The compact footprint allows efficient integration into filling lines and automated systems, maximizing productivity while minimizing installation space.
The SETIN peristaltic pump is available in two versions:
Stainless steel – ideal for applications with stringent hygienic requirements and production environments that demand maximum durability and long-term structural stability.
Aluminium – a lighter and more cost-efficient solution, suitable for applications with moderate environmental and mechanical requirements.
This dual configuration enables customers to select the most appropriate solution for their operational needs without compromising performance or reliability.
Cleaning
All component are easy to clean and sterilize by autoclave.
White Label
All solutions can benefit from white labeling services.
Designed for maximum versatility, ATLAS can be easily configured with different gripping tools to handle canisters, tanks, bin line components and process equipment.
Its adaptable structure ensures operational continuity and ease of use, while meeting the strict compliance requirements of regulated industries.
The result is a flexible and reliable system that supports efficient material handling in complex production settings.
Atlas is a transfer trolley/lifter designed to ensure safe, precise handling fully compatible with controlled contamination environments in the pharmaceutical industry.
It combines robustness, hygiene and maximum operational reliability. Our transfer trolley represents a strategic solution to enhance ergonomics, safety and productivity in cleanroom environments.
ATLAS transfer trolley
ISO classification
ISO Class 7
Compact dimension:
1200x1950xh1500 mm
Max. lifting capacity
150 Kg
Lifting interval:
360 mm to 1150 mm.
Material
AlSI304L stainless steel.
| CRITERIA | ASTRA LAB | ASTRA ROBOT |
|---|---|---|
| CAPSULE SIZE | 000, 00, 0, 1, 2, 3, 4, 5 | 000, 00, 0, 1, 2, 3, 4, 5 |
| MATCHING DOSING OUTPUT | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER |
| SECTOR | PHARMA, NUTRACEUTICAL, FOOD | PHARMA, NUTRACEUTICAL, FOOD |

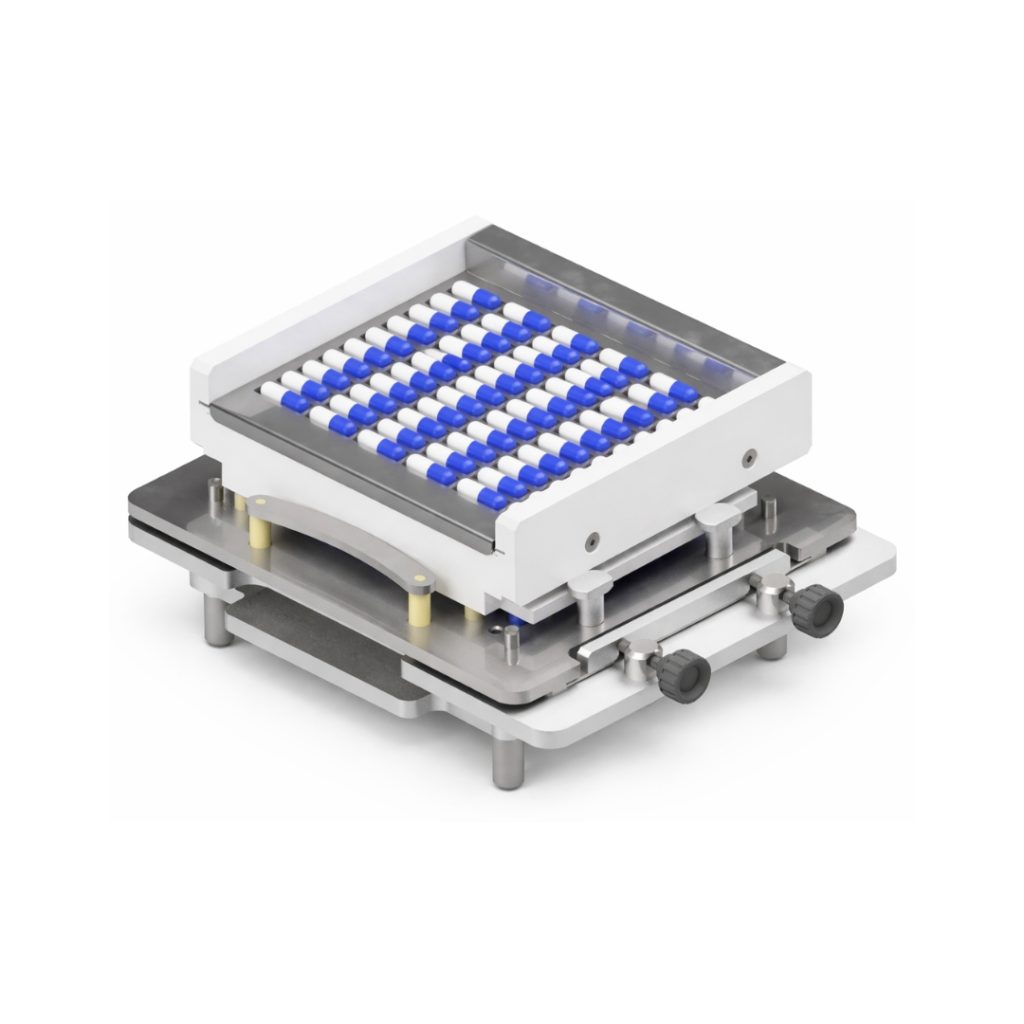

ASTRA CAPSULE FILLING MACHINES
Manufactured to the highest standards and compliant with current GMP standards, ASTRA meets the demand of reliable and compact manual capsule filling machine. Moreover, the intuitive design design allows for quick cleaning and effortless part changes, maximizing operational efficiency. Each part in contact with the capsules is fully traceable, ensuring quality and compliance.
Level of automation
Automatic, semiautomatic, manual.
Productivity
From 50 capsules for larger sizes to 150 capsules for smaller sizes.
Dimensions
195x250x200mm
| CRITERIA | NEPTUNE 60 | NEPTUNE 60 GEMINI | NEPTUNE 120 | NEPTUNE 120 GEMINI | NEPTUNE ∞ |
|---|---|---|---|---|---|
| VOLUME (ml) | UP TO 60 | UP TO 60 (X2) | UP TO 120 | UP 120 (X2) | ∞ |
| DOSER N° | 1 | 2 | 1 | 2 | 1 |
| TECHNOLOGY | ELASTOMER | ELASTOMER | ELASTOMER | ELASTOMER | STAINLESS STEEL PERISTALTIC PUMP |
| TANK | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | OPTIONAL |
| PRODUCTIVITY | UP TO 60 | UP TO 60 (X2) | UP TO 60 | UP TO 60 (X2) | / |
| DISPOSABLE | YES | YES | YES | YES | YES |
| DOSING ACCURACY | ±1% | ±1% | ±1% | ±1% | < 1% |
| TYPE OF FLUID | FLUID IN GENERAL (NO SOLVENT) | FLUID IN GENERAL (NO SOLVENT) | FLUID IN GENERAL (NO SOLVENT) | FLUID IN GENERAL (NO SOLVENT) | LOW DENSITY FLUIDS (NO SOLVENT) |
| OPTIONAL | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm |

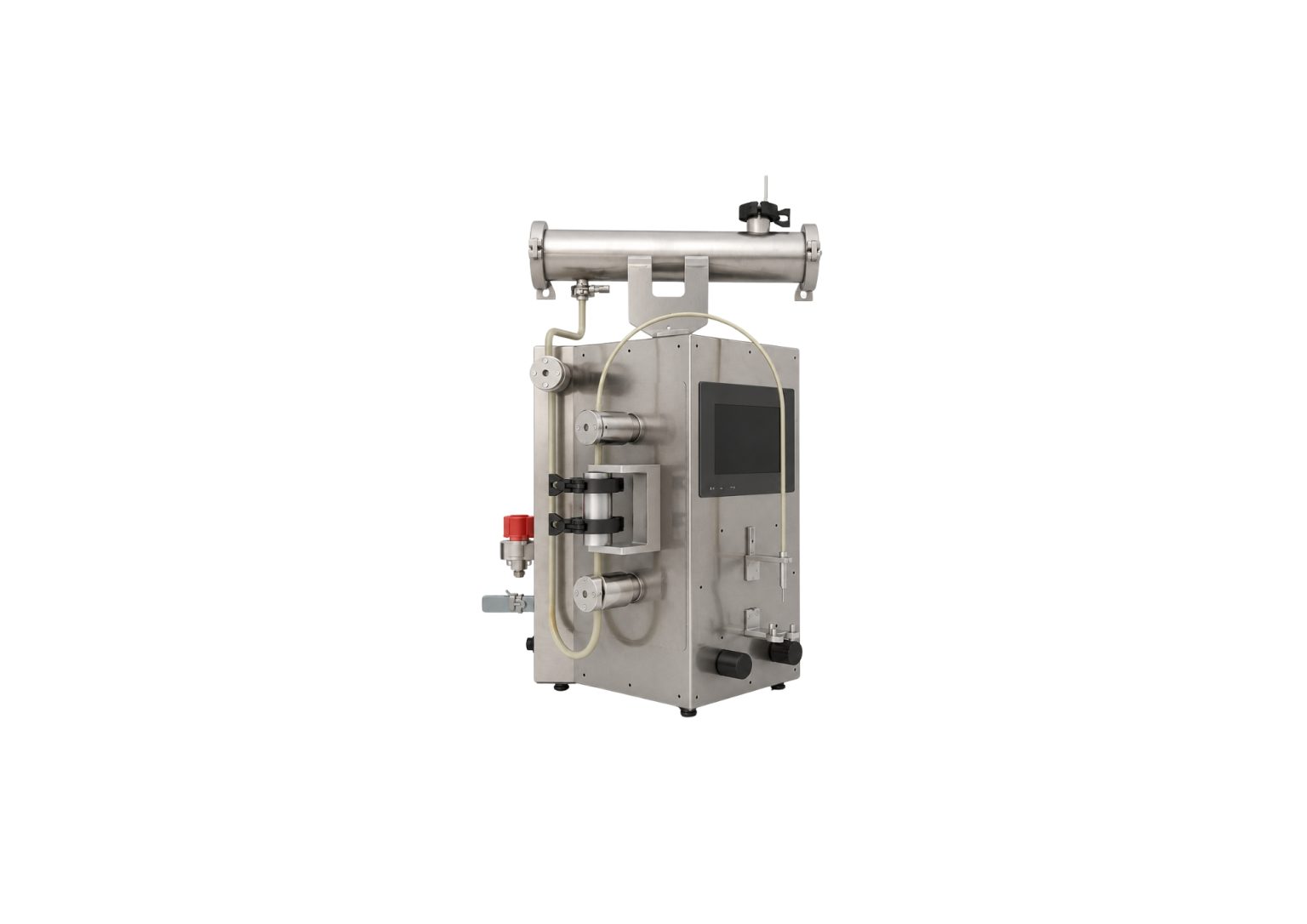

NEPTUNE is our first modular machine: a patented dosing system, with a high level of precision and a lower price than other conventional dosing systems. Particularly suitable for the pharmaceutical, food and cosmetic sector, Neptune doses any type of fluid regardless density and viscosity.
Cleaning
All component are easy to clean and sterilize by autoclave.
White Label
All solutions can benefit from white labeling services.
Dimensions LxWxH
450x400x550mm
| CRITERIA | SCORPIO MONO | SCORPIO MONO | SCORPIO GEMINI | SCORPIO GEMINI |
|---|---|---|---|---|
| ROW N° | 1 | 1 | 2 | 2 |
| PRODUCTIVITY | UP TO 50 | UP TO 50 | UP TO 100 | UP TO 100 |
| PACKAGING | STICKPACK | SACHET | STICKPACK | SACHET |
| OUTPUT MODULE | SLIDE OR CONVEYOR BELT | SLIDE OR CONVEYOR BELT | SLIDE OR CONVEYOR BELT | SLIDE OR CONVEYOR BELT |
| MATCHING DOSING FORMS | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER |

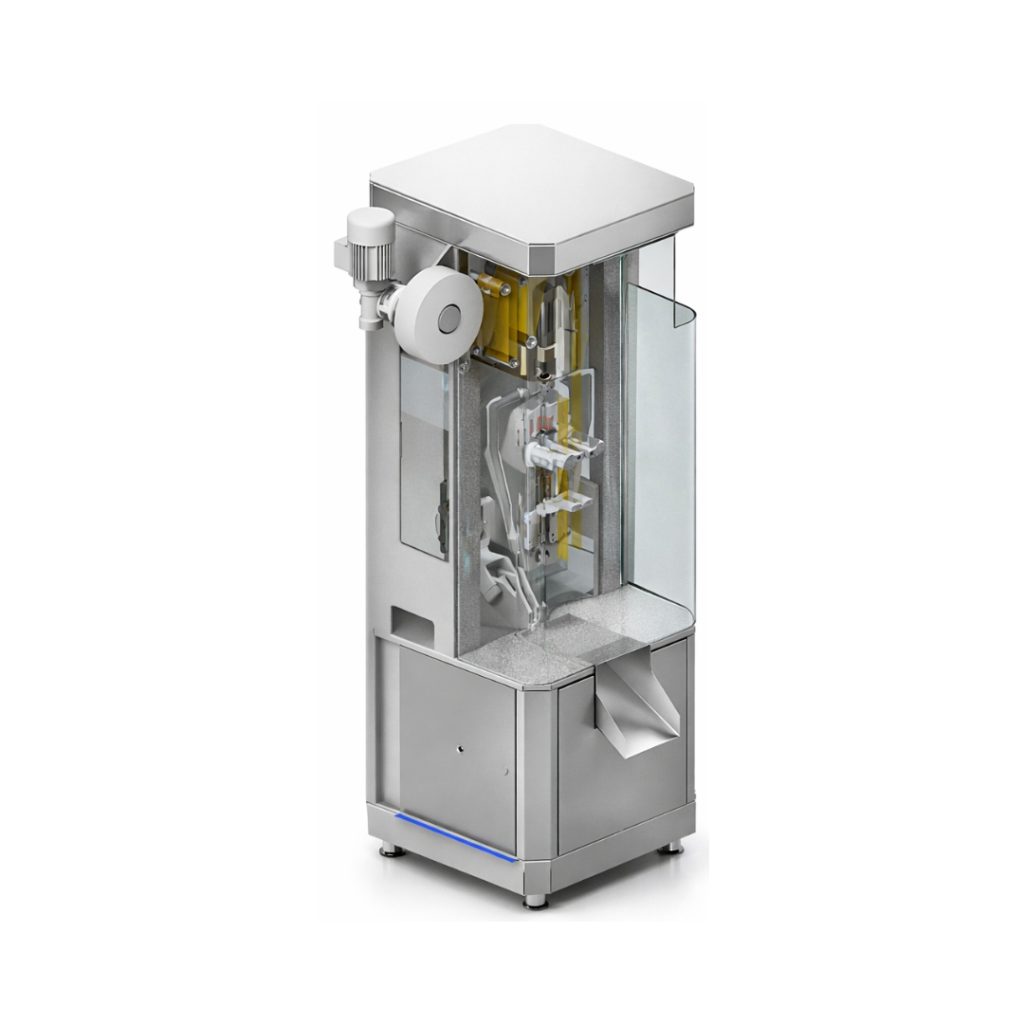

SCORPIO VERTICAL PACKAGING MACHINES
SCORPIO meets the growing demand for single-portion, practical, and easy-to-distribute products. Our vertical packaging machine provides a innovative solution for liquid and powder packaging in the food and nutraceutical sector.
Scorpion can be combined with a variety of dispensers to suit different product types – from powder and granule dosers to liquid an gel filling machines.
Stick pack
Maximum diameter: 25 mm
Maximum length: 150 mm
Sachet
Maximum width: 80 mm
Maximum height: 150 mm
Dimensions LxWxH
600x600x1800mm
| CRITERIA | NEPTUNE ESSENTIAL | NEPTUNE 60 | NEPTUNE 60 GEMINI | NEPTUNE 120 | NEPTUNE 120 GEMINI | NEPTUNE 750 | NEPTUNE HD | NEPTUNE HD |
|---|---|---|---|---|---|---|---|---|
| VOLUME (ml) | ∞ | UP TO 60 | UP TO 60 (X2) | UP TO 120 | UP 120 (X2) | UP TO 750 | ∞ | ∞ |
| DOSER N° | 1 | 1 | 2 | 1 | 2 | 1 | 1 | 1 |
| TECHNOLOGY | LOAD CELL + FLOW CONTROL VALVE | ELASTOMER | ELASTOMER | ELASTOMER | ELASTOMER | VOLUMETRIC PUMP | PE GEAR/LOBE PUMP | STAINLESS STEEL GEAR/LOBE PUMP |
| TANK | 30L | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | 2L PRESSURISED MINIMUM REQUIREMENT (PED) | OPTIONAL | / | / |
| PRODUCTIVITY | / | UP TO 60 | UP TO 60 (X2) | UP TO 60 | UP TO 60 (X2) | UP TO 45 | / | / |
| DISPOSABLE | NO | YES | YES | YES | YES | / | / | / |
| DOSING ACCURACY | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | / | / |
| TYPE OF FLUID | FLUID IN GENERAL | FLUID IN GENERAL | FLUID IN GENERAL | FLUID IN GENERAL | FLUID IN GENERAL | FLUID IN GENERAL | DENSE FLUID | DENSE FLUID |
| OPTIONAL | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm (ONLY FOR TIME BASED DOSAGES) | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm | STAND ALONE NOZZLE HOLDER, ROTARY TABLE Ø 500mm, UPPER HOPPER |
NEPTUNE is our first modular machine: a patented dosing system, with a high level of precision and a lower price than other conventional dosing systems. Particularly suitable for the pharmaceutical, food and cosmetic sector, Neptune doses any type of fluid regardless density and viscosity.
Cleaning
All component are easy to clean and sterilize by autoclave.
White Label
All solutions can benefit from white labeling services.
| CRITERIA | SCORPIO MONO | SCORPIO MONO | SCORPIO GEMINI | SCORPIO GEMINI |
|---|---|---|---|---|
| ROW N° | 1 | 1 | 2 | 2 |
| PRODUCTIVITY | UP TO 50 | UP TO 50 | UP TO 100 | UP TO 100 |
| PACKAGING | STICKPACK | SACHET | STICKPACK | SACHET |
| OUTPUT MODULE | SLIDE OR CONVEYOR BELT | SLIDE OR CONVEYOR BELT | SLIDE OR CONVEYOR BELT | SLIDE OR CONVEYOR BELT |
| MATCHING DOSING FORMS | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER | ALL NEPTUNE SERIES, POWDER DISPENSER, CARTRIDGE CHARGER |

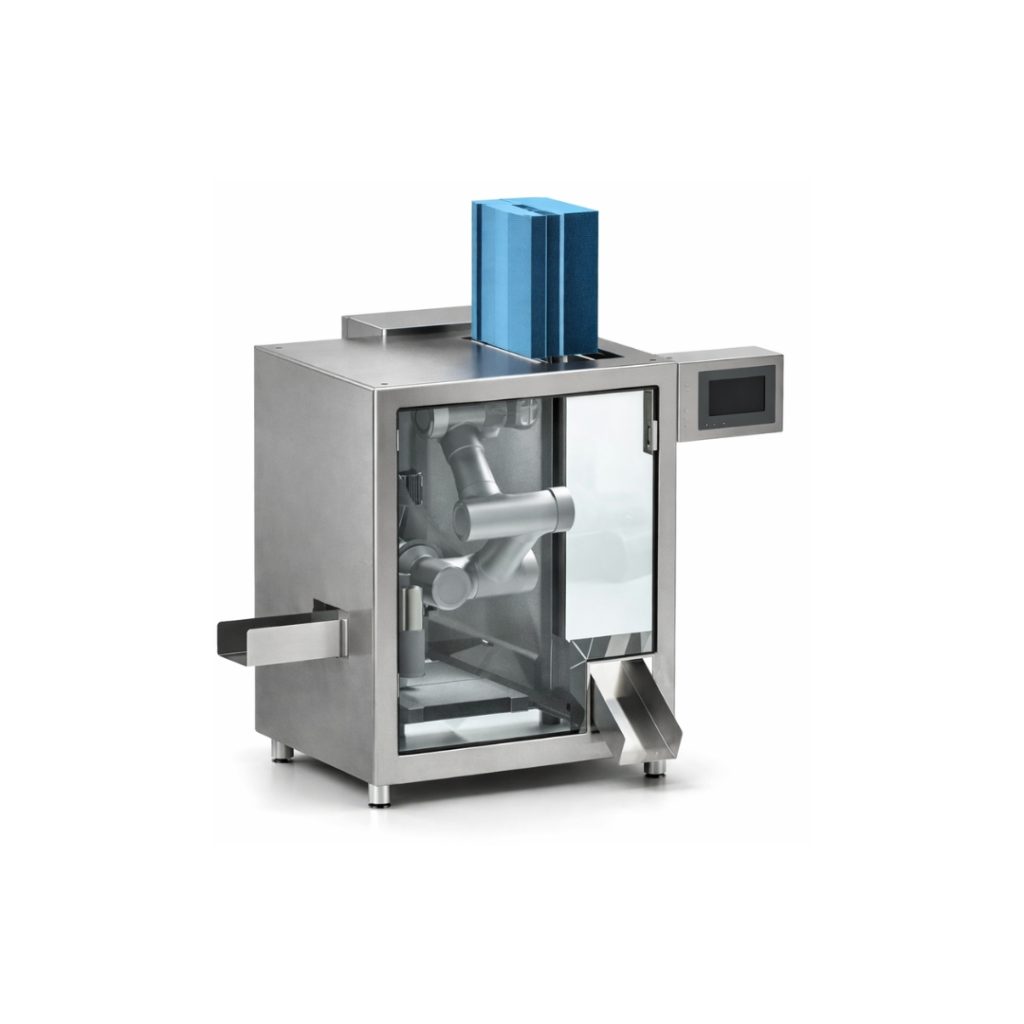

Level of automation
Automatic, semiautomatic.
Format
Pre-glued cases up to 150 x 80 x 220 mm.
Productivity
Up to 15 cartons/min.
Dimensions LxWxH
700X550X700 mm
